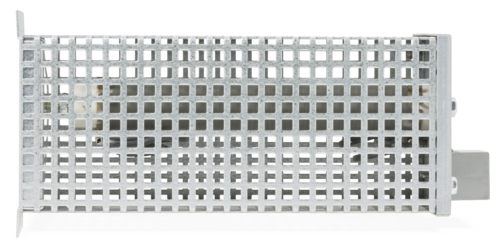

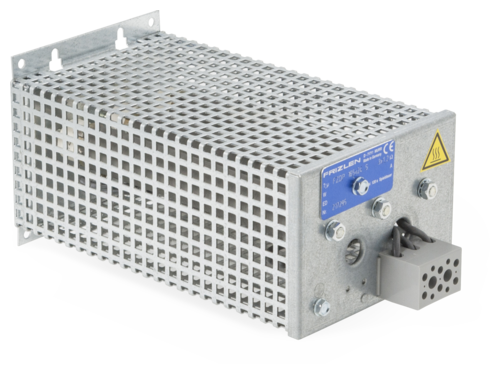

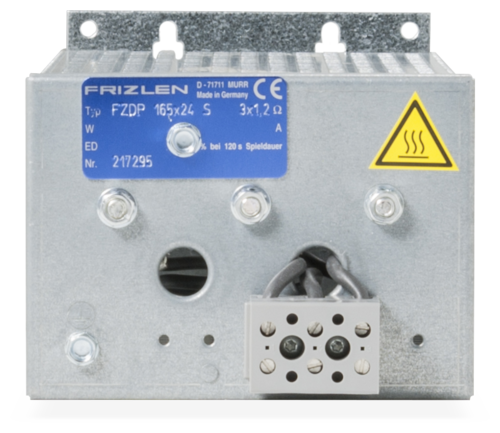

Abbildung ähnlich; Dargestellt ist die Type FZDP 165x24 S mit Anschluss an Klemmen
Product group :
T100 | Tubular Fixed Resistors
Type series :
FZZP / FZDP / FUZP / FUDP
FZDP 100x24 S
Cemented wirewound tubular fixed resistor in one-tube design, degree of protection IP20, in perforated steel sheet enclosure, mounting vertical to mounting surface, connections optionally at terminals or at screw or fast-on clips at the resistor. For integration into switch cabinets.
Electrical Data
Power
132 WOhm value production range
0.47 Ohm - 8.2 kOhmProtection degree
IP20 Terminals protected against access to hazardous parts according to BGV A2Connection
KlemmenVoltage range
up to 3 x 500 VAC and derived DC voltagesOptions
- Temperature switch available only from tube size D = 24 mm on Please note: There will not be a disconnection of the resistor, signal is to be used by customer
- Type designation would be: FZ.PQ ...
- Contact rating of the signal contact: - 2 A / 24 VDC (DC11) - 2 A / 230 VAC (AC11)
- UL recognition available You will find suggestions for the dimensioning of the resistor for continuous and short term load in the related data sheet
Mechanical Data
Weight
800 gDimensions
A: 45 mm
B: 110 mm
C: 90 mm
H: 123 mm
Mit Temperaturschalter gilt Maßbild 11m0438_FZPQ-FZDPQ.pdf
Data sheet
Dimension
