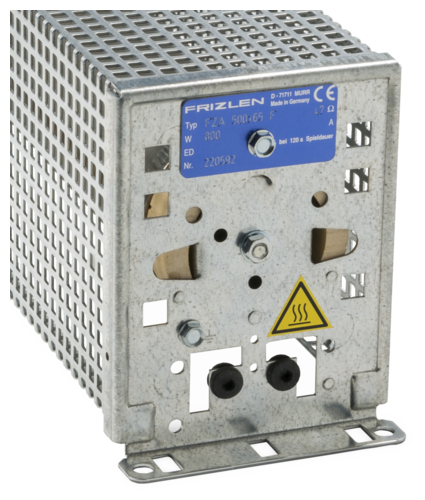

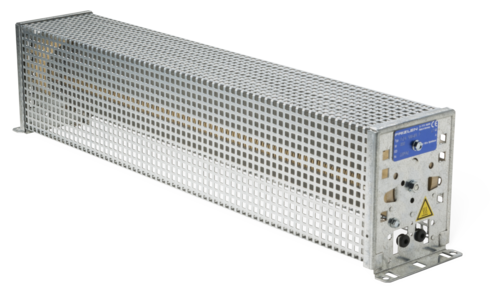

Abbildung ähnlich Dargestellt ist die Type FZA500x65
Product group :
T100 | Tubular Fixed Resistors
Type series :
FZA / FZZA / FZDA
FZA 500x65
Cemented wirewound tubular fixed resistor in one-, two- or three-tubes design, degree of protection IP20 if mounted on an appropriate surface, with sidepanels and perforated cover. Fixing parallel to mounting surface. Connections at screw clips at the resistor tube.
Electrical Data
Power
800 WOhm value production range
12 Ohm - 82 kOhmmit Abgreifschelle nur mit eingeschränktem Widerstandsbereich lieferbar.
Protection degree
IP20 If mounted on an appropriate surfaceConnection
Steck- oder Schraubschellen möglichVoltage range
up to 3 x 500 VAC and derived DC voltagesMechanical Data
Weight
2.7 kgDimensions
H: 120 mm
K: 6 mm
M: 530 mm
O: 546 mm
R: 92 mm
U: 64 mm
Data sheet
EU certificate of conformity
1_FZA-FZZA-FZDA_100x35-800x85_EG-Konformitaetserklaerung_DeclarationOfConformity.pdf
