Product group :
T100 | Tubular Fixed Resistors
Type series :
FZ / FU

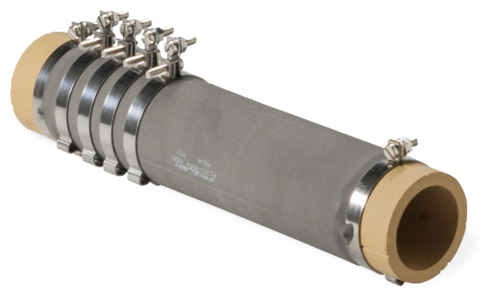

FZ 300x65

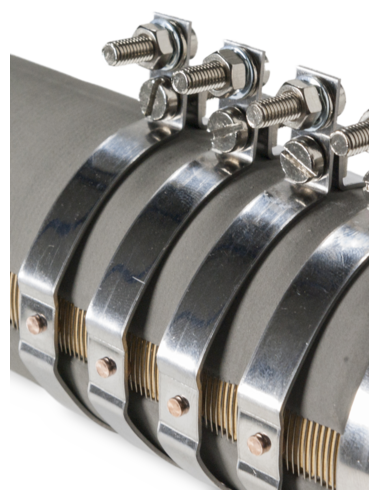

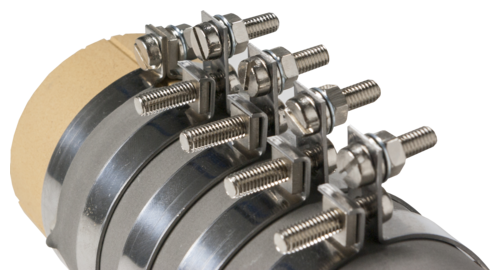

Cemented (FZ) and uncemented (FU) wirewound tubular fixed resistor, degree of protection IP00. Variable connections at the soldering, fast-on or screw clips on the resistor.
Electrical Data
Power
430 WOhm value production range
6.8 Ohm - 47 kOhmmit Abgreifschelle nur mit eingeschränktem Widerstandsbereich lieferbar.
Protection degree
IP00Connection
Steck- oder Schraubschellen möglichVoltage range
up to 3 x 500 VAC and derived DC voltagesMechanical Data
Weight
1.1 kgDimensions
B: 68 mm
E: 250 mm
F: 80 mm
G: 90 mm
