Product group :
T600 | Steel-grid Fixed Resistors
Type series :
FK 3
FK 31114
Steel-grid fixed resistor unit, degree of protection IP 00 with 2 side-panel end plates out of zinc plated steel sheet. Ceramic isolated flat or bolt terminals of 35 A up to 400 A in variable combinations available.
Electrical Data
Power
7,0 kWOhm value production range
0.31 Ohm - 78 OhmProtection degree
IP00Voltage range
up to 3 x 500 VAC and derived DC voltagesOptions
- UL recognition
- setup for higher voltage upon request
- temperature switch
Mechanical Data
Weight
19 kgDimensions
A: 370 mm
B: 395 mm
C: 460 mm
Data sheet

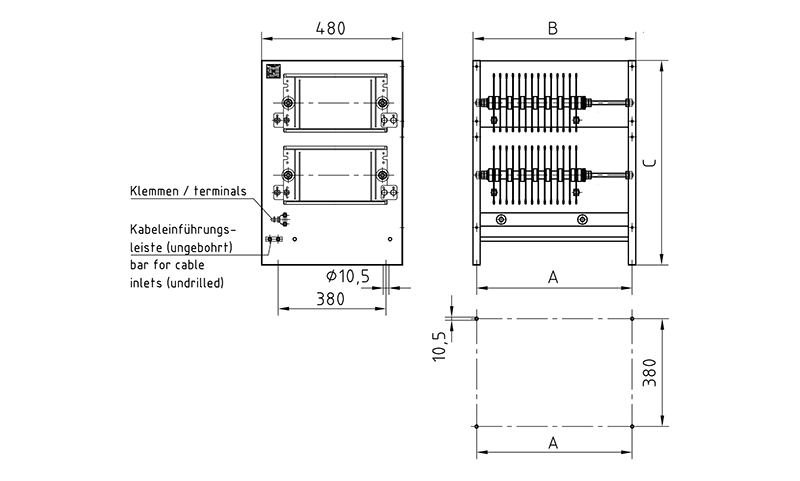

Dimension
