Product group :
T300 | Flat Resistors
Type series :
GXTD
GXTD 100x88
Wirewound flat resistor, degree of protection IP 40. Maximum width up to 200 mm, maximum length up to 400 mm. Standard version with aluminium-zink enclosure. With 2 PTFE-wires, AWG 18 (0,79 mm²), 0,3 m long.
Electrical Data
Power
100 WOhm value production range
1 Ohm - 2.2 kOhmProtection degree
IP40Connection
Mit 2 FEP-Litzen, AWG 18 (0,79 mm²), 0,3 m lang.Voltage range
up to 800 VDCOptions
- housing in stainless steel
- connection modes upon request
- length of connection wires variable

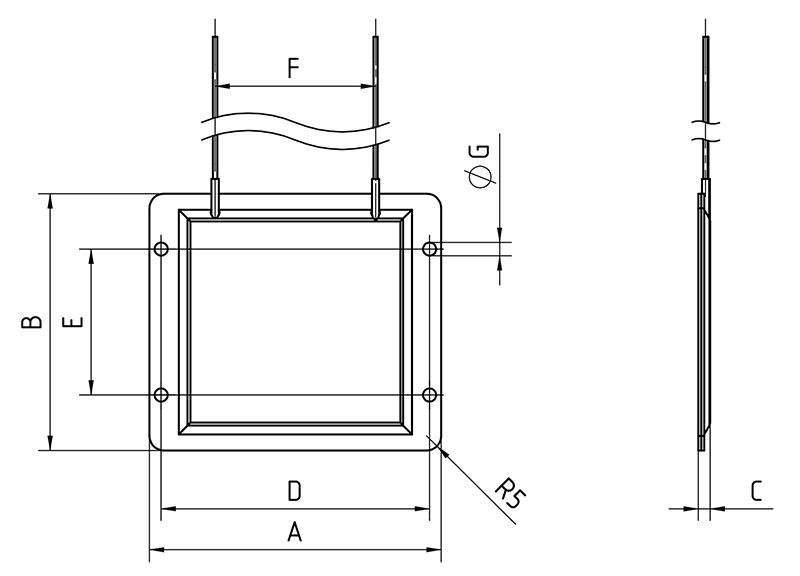

Mechanical Data
Weight
162 gDimensions
A: 100 mm
B: 88 mm
C: 4 mm
D: 92 mm
E: 50 mm
F: 55 mm
G: 4 mm
Data sheet
Dimension
