Product group :
T300 | Flat Resistors
Type series :
GXAD / GXMD x70
GXMD 110x70
Short-circuit proof wirewound flat resistor, in blank aluminium enclosure. With different sizes and for different voltages.PT Design with 2 PTFE-wires, AWG 14/19 (mind. 2,1 mm²), 0,5 m long. Type series: GXAD.. rated voltage max. 848 VDC Type series: GXMD.. rated voltage max. 1100 VDC
Electrical Data
Power
100 WOhm value production range
2.7 Ohm - 3.3 kOhmProtection degree
IP40Connection
mit 2 PTFE-Litzen, AWG 14/19 (2,1 mm²)Voltage range
up to 1100 VDCOptions
- mounting brackets available as accessories upon request

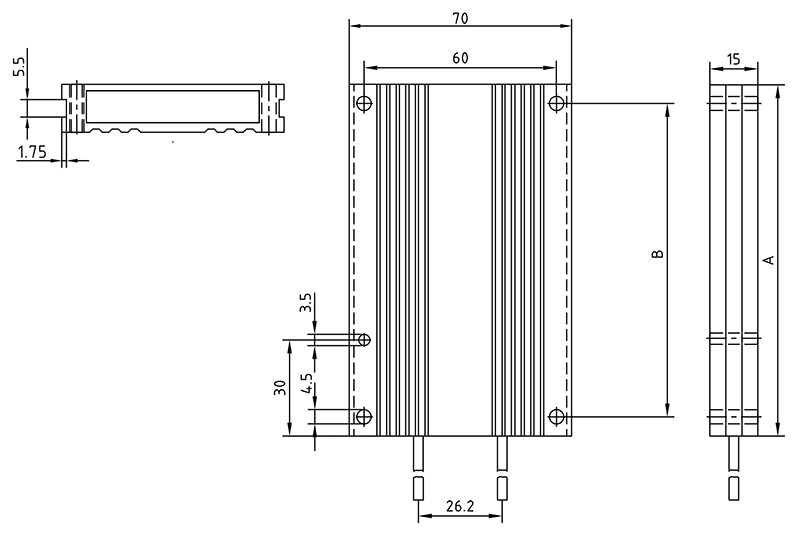

Mechanical Data
Weight
300 gDimensions
A: 110 mm
B: 98 mm
Data sheet
Dimension
