Product group :
T300 | Flat Resistors
Type series :
GU / GZ

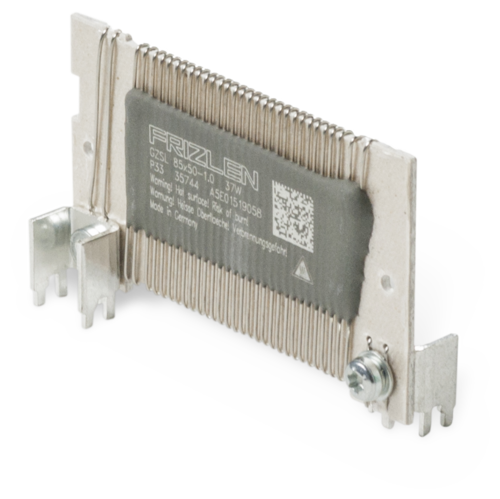

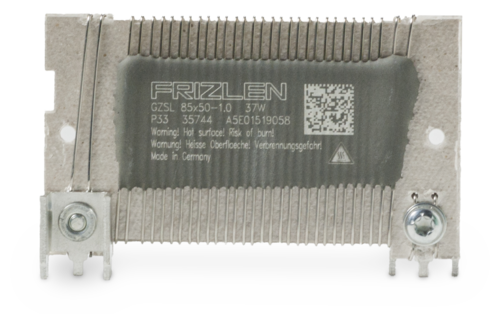

GZSL 85x50
Wirewound mica flat resistor, degree of protection IP00. Maximum width up to 115 mm, maximum length up to 300 mm. Depending upon version either wired with blank (GZ..) or with insulating-oxidized wire (GU..). We fix the blank wire of the standard version by an additional strip cementing.
Electrical Data
Power
37 WOhm value production range
1 Ohm - 2.2 kOhmOhmwertbereich dank flexibler Maße auf Anfrage erweiterbar
Protection degree
IP00Connection
Ausführung für Leiterplatten-MontageVoltage range
up to 848 VDCOptions
- low noise and induction design
- with center taps, e.g. for several partial resistors on one strap
Mechanical Data
Weight
50 gDimensions
Data sheet

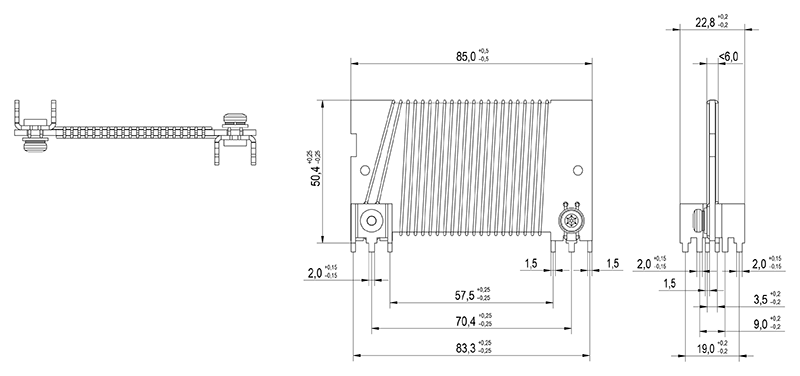

Dimension
