GMAD 230x13

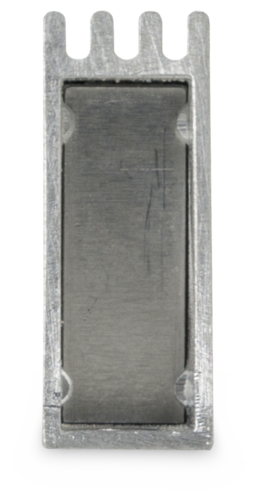

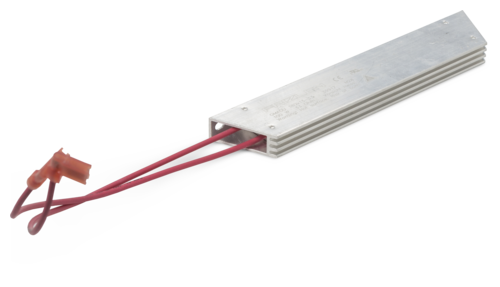

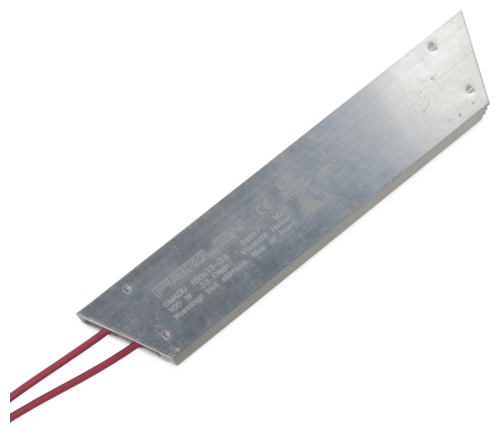

Short-circuit proof wirewound flat resistor, degree of protection IP 40 in blank aluminium enclosure. Design with 2 PTRadox-wires, AWG 18/19 (0,82 mm²), 0,5 m long. There are 4 versions available: horizontal – type series GLAD vertical – type series GMAD

Electrical Data

Power

110 W

Ohm value production range

3.3 Ohm - 10 kOhm

Protection degree

IP40

Voltage range

up to 800 VDC

Options

By direct mounting on an appropriate cooling surface or onto a heat sink the continuous dissipation can be increased resp. the surface temperature can be lowered. Typical factors for an increase are 1,5 up to 5, depending on type, ventilation and size of the cooling surface or heat sink.

Mechanical Data

Weight

200 g

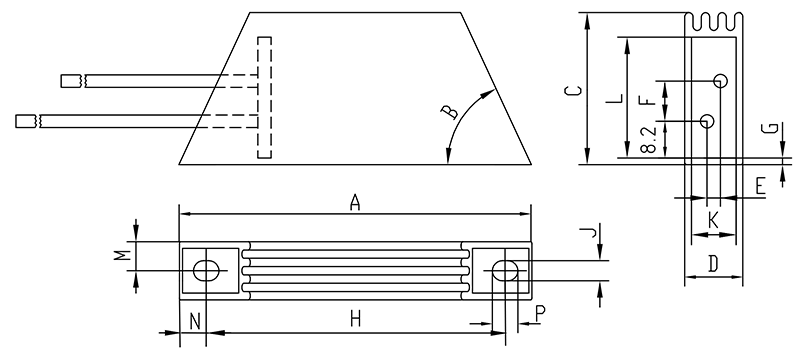

Dimensions

A: 230 mm B: 50 mm C: 34 mm D: 13 mm G: 1 mm H: 218 mm J: 4 mm
