FZZP / FZDP / FUZP / FUDP
130
9
669
FZZP 75x24 S
Product
FZZP 75x24 S
/fileadmin/_processed_/csm_T100_FZZPQU200x45S_a_b92dd64366.png /fileadmin/user_upload/Product_Database/Bilder/T100_FZZPQU200x45S_a.png
/fileadmin/_processed_/csm_T100_FZZPQU200x45S_front_e4317c7df4.png /fileadmin/user_upload/Product_Database/Bilder/T100_FZZPQU200x45S_front.png
/fileadmin/_processed_/csm_T100_FZZPQU200x45S_site_09995d960e.png /fileadmin/user_upload/Product_Database/Bilder/T100_FZZPQU200x45S_site.png Abbildung ähnlich;
Dargestellt ist die Type FZZPQU200x45S mit Temperaturschalter, UL-Zulassung und Anschluss an Klemmen
Cemented wirewound tubular fixed resistor in one-tube design, degree of protection IP20, in perforated steel sheet enclosure, mounting vertical to mounting surface, connections optionally at terminals or at screw or fast-on clips at the resistor. For integration into switch cabinets.
Product group
T100 | Tubular Fixed Resistors
Type series
FZZP / FZDP / FUZP / FUDP
- Data sheet
- Download
Electrical data
Power dissipation
64 W
Ω value production range
0,18 Ohm - 33 kOhm
Degree of protection
IP20
Terminals protected against access to hazardous parts according to BGV A2
Terminals protected against access to hazardous parts according to BGV A2
Connection
on terminals (open)
Voltage range
up to 3 x 500 VAC and derived DC voltages
Options
• Temperature switch available only from tube size D = 24 mm on
Please note: There will not be a disconnection of the resistor, signal is to be used by customer
• Type designation would be: FZ.PQ ...
• Contact rating of the signal contact:
- 2 A / 24 VDC (DC11)
- 2 A / 230 VAC (AC11)
• UL recognition available
You will find suggestions for the dimensioning of the resistor for continuous and short term load in the related data sheet
Please note: There will not be a disconnection of the resistor, signal is to be used by customer
• Type designation would be: FZ.PQ ...
• Contact rating of the signal contact:
- 2 A / 24 VDC (DC11)
- 2 A / 230 VAC (AC11)
• UL recognition available
You will find suggestions for the dimensioning of the resistor for continuous and short term load in the related data sheet
Mechanical data
Weight approx.
620 g
Dimensions
A: 45 mm
B: 110 mm
C: 90 mm
H: 123 mm
B: 110 mm
C: 90 mm
H: 123 mm
Mit Temperaturschalter gilt Maßbild 11m0438_FZPQ-FZDPQ.pdf
Application
Mounting
mounting into switch cabinetwall mounting
Typical application
braking resistorfilter resistor

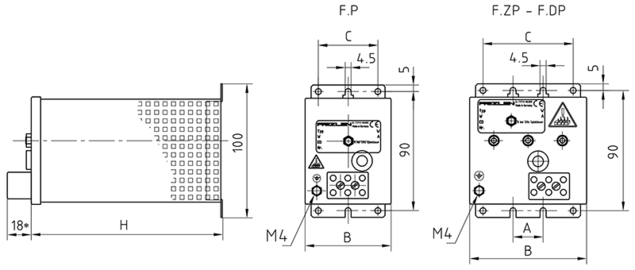

Dimension drawing
Product: 11m0120_FZP-FUDP.pdf
Datenblatt
DE: T100_FZP-FUDP.pdf
EN: T100E_FZP-FUDP.pdf
Declaration of conformity
Not available
Wiring diagram
Not available
3D data
Not available
