Back to search resultProduct
R10 / R20 / R40
131
18
1108
R10
Product
R10
/fileadmin/_processed_/csm_T200_R10_p-top-ring_6c0cc7055e.png /fileadmin/user_upload/Product_Database/Bilder/T200_R10_p-top-ring.png
/fileadmin/_processed_/csm_T200_R10_p-bottom-conn_203a8c37e4.png /fileadmin/user_upload/Product_Database/Bilder/T200_R10_p-bottom-conn.png
/fileadmin/_processed_/csm_T200_R10_bottom_278302018d.png /fileadmin/user_upload/Product_Database/Bilder/T200_R10_bottom.png Cement coated wirewound variable resistor, protection degree IP00, for integration, fast-on connections
Product group
T200 | Wirewound Potentiometers
Type series
R10 / R20 / R40
- Data sheet
- Download
Electrical data
Power dissipation
16 W
Ω value production range
1,5 Ohm - 10 kOhm
Degree of protection
IP00
Connection
screw connection
Voltage range
up to 3 x 230/400 V
Options
• available with special shaft lenghts
• stepped winding (not for R10)
• lower tolerance for ohmic value
• stepped winding (not for R10)
• lower tolerance for ohmic value
Mechanical data
Weight approx.
50 g
Dimensions
A: 34 mm
B: 28 mm
C: 40 mm
B: 28 mm
C: 40 mm
Application
Mounting
Typical application

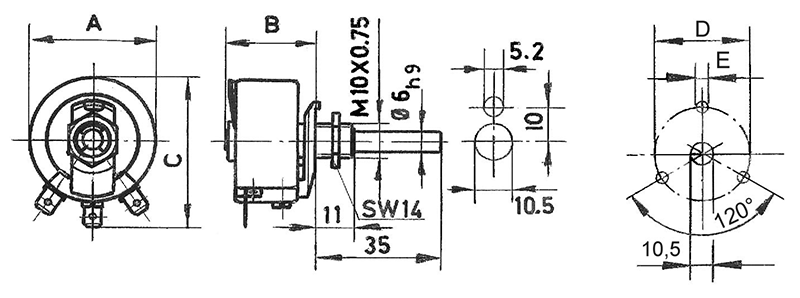

Dimension drawing
Type series: 12M-0802-00-001_R10-RD80.pdf
Datenblatt
DE: T200_R10-R500.pdf
EN: T200E_R10-R500.pdf
Declaration of conformity
Not available
Wiring diagram
Not available
3D data
Not available
