FAV 38976 (T400)
Product
FAV 38976 (T400)
/fileadmin/_processed_/csm_T600_FAV3884008_a_e4a2241808.png /fileadmin/user_upload/Product_Database/Bilder/T600_FAV3884008_a.png
/fileadmin/_processed_/csm_T600_FAV3884008_detail1_f1f592447d.png /fileadmin/user_upload/Product_Database/Bilder/T600_FAV3884008_detail1.png
/fileadmin/_processed_/csm_T600_FAV3884008_detail2_347bad2ba7.png /fileadmin/user_upload/Product_Database/Bilder/T600_FAV3884008_detail2.png Abbildung ähnlich
Steel-grid fixed resistor unit, degree of protection IP 20, air outlet on top.
In completely closed zinc sheet enclosure with barrier grid at the bottom and powered ventilation by an integrated ventilator. With air flow monitoring by wind indicator relay. Ceramic insulated flat or bolt terminals of 35A up to 400A or copper bars in variable combinations available.
In completely closed zinc sheet enclosure with barrier grid at the bottom and powered ventilation by an integrated ventilator. With air flow monitoring by wind indicator relay. Ceramic insulated flat or bolt terminals of 35A up to 400A or copper bars in variable combinations available.
Product group
T400 | Load and Test Resistors
Type series
FAV.3
- Data sheet
- Download
Electrical data
Power dissipation
300 kW
Ω value production range
Degree of protection
IP20
Connection
on terminals inside housing
Voltage range
up to 3 x 230/400 V
Options
• with 2 temperature switches wired on terminals
• special voltages of fan
• please ask for devices with higher power ratings or other construction forms
• mobile, for test area by rollers
• special voltages of fan
• please ask for devices with higher power ratings or other construction forms
• mobile, for test area by rollers
Mechanical data
Weight approx.
350 kg
Dimensions
A: 1435 mm
B: 1485 mm
C: 1190 mm
D: 1000 mm
E: 1004 mm
F: 980 mm
B: 1485 mm
C: 1190 mm
D: 1000 mm
E: 1004 mm
F: 980 mm
Application
Mounting
floor-level mountingmobile device on steering rolls
Typical application
load resistordischarging resistorlaboratory resistor

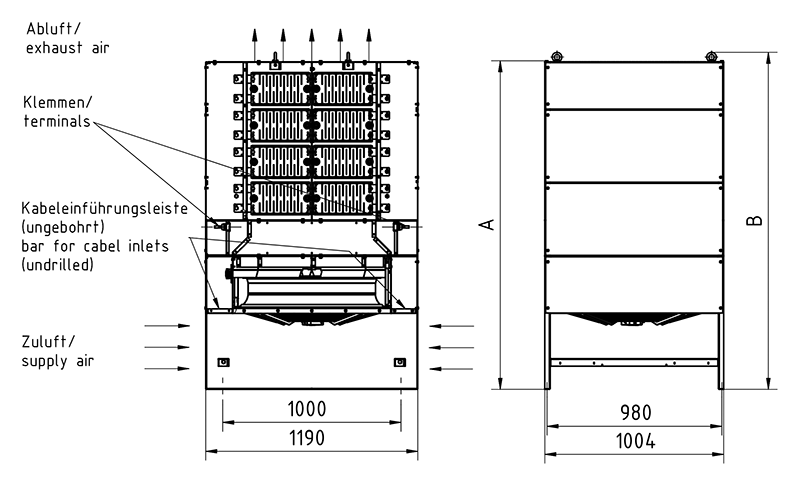

Dimension drawing
Product: 16M-0786-00-001_FAV389-390.pdf
Datenblatt
DE: T400_FA-FSVR.pdf
EN: T400E_FA-FSVR.pdf
Declaration of conformity
29_FSV-M_385-388_EG-Konformitaetserklaerung_DeclarationOfConformity.pdf
Wiring diagram
Not available
3D data
Not available
